034Motorsport SüperDüper Charger 84mm Throttle Body System - Audi B8/B8.5 Q5/SQ5 3.0 TFSI
034Motorsport's complete SüperDüper 84mm throttle body upgrade for the B8/B8.5 Audi Q5/SQ5 3.0 TFSI supercharged engine, replacing the OE throttle body (part numbers 06E 133 062 H/G/C) for increased airflow.
Features
- 84mm VDO throttle body
- Cast and machined aluminium adapter
- Wire-reinforced multi-ply silicone hose
- 034 measured flow: 293 CFM stock to 452 CFM with the S34 intake bundle (+20% at the throttle body alone)
Fitment
- Audi Q5 B8/B8.5 3.0 TFSI (2009-2017)
- Audi SQ5 B8/B8.5 3.0 TFSI (2012-2017)

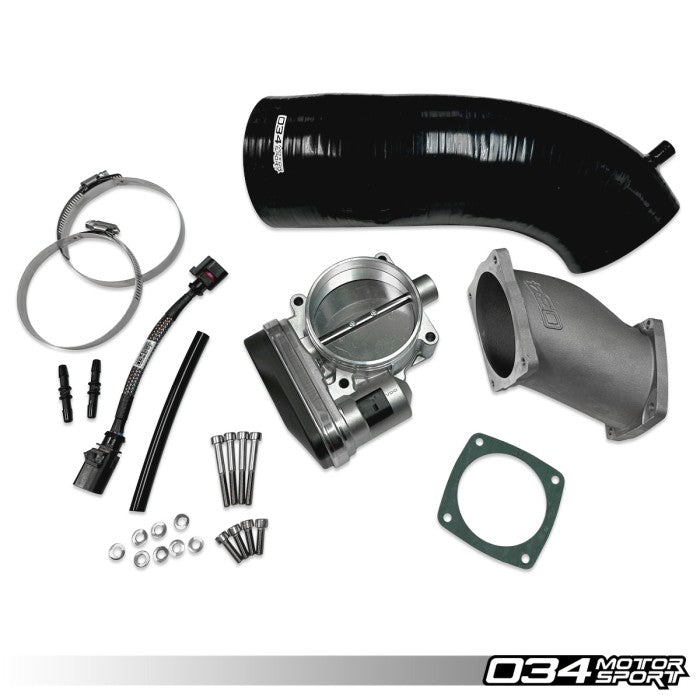

Included
- 84mm VDO throttle body
- Throttle body adapter
- Silicone hose
- Wiring harness adapter
- Adapter-to-supercharger gasket and hardware
Notes
Designed to connect to the 034Motorsport S34 intake. It does not directly fit the factory intake; other intake systems may require modification.
Install effort MILD, approx. 1 hour. 034Motorsport Dynamic+ Tuning (Stage 2+) is required to safely run this upgrade; the OE ECU calibration is not compatible. 034 supplies this part for motorsport and off-road use.
