1.9TDI PD Shallow Sump Kit
1.9TDI PD Shallow Sump Kit
Click to zoom in

1.9TDI PD Shallow Sump Kit

Stock to order In stock

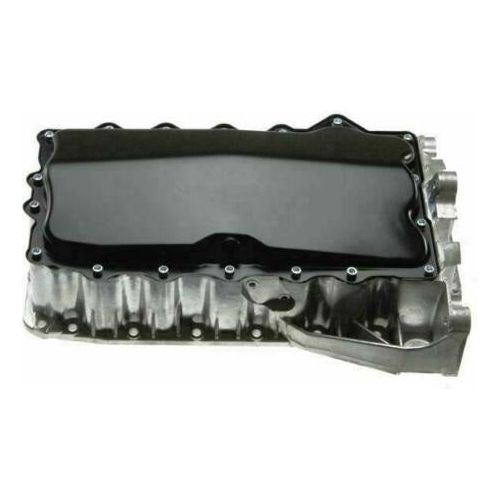

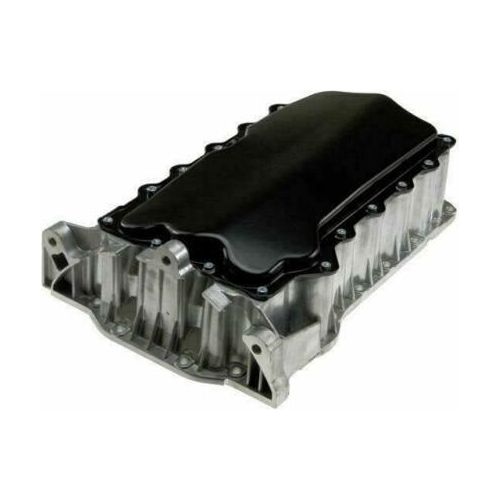

Shallow Sump for 1.9 8v TDI Engines
  • Gives around 11mm of extra clearance
  • Perfect for lowered cars
  • Made from steel to avoid cracking

This sump gives around 11mm of extra clearance, however the main benefit is that the bottom is made from Steel rather than Alloy, so it will bend rather than cracking under impact

Included in this kit:

Shallow Sump
Shorter Oil Pickup Pipe


70ml Sump Sealant
The sump does not have an Oil Level Sensor, so this will need to be coded out using VCDS

PLEASE NOTE - On the TDI Engines, the Oil Return goes into the ENGINE BLOCK so you do not need any additional parts to fit this to a TDI

These will fit cars with the following engine codes:
VW Bora - AGR / ALH 90, ATD / AXR 100, AHF / ASV 110, AJM / AUY 115, ASZ 130, ARL 150
VW Caddy - ALH 90
VW Golf Mk4 - AGR / ALH 90, ATD / AXR 100, ASV / AHF 110 AUY / AJM 115, ASZ 130, ARL 150
VW Polo - AGR 90, ATD / AXR / BMT 100, ASZ / BLT 130
Audi A3 - ATD / AXR 100, AHF / ASV 110, ASZ 130
Seat Alhambra - ANU 90, AUY / BVK 115, ASZ 130, BTB 150
Seat Cordoba - AGR 90, ATD 100, AHF / ASV 110, ASZ 130
Seat Ibiza - AGR 90, ATD / AXR 100, ASZ / BLT 130, BPX / BUK 160
Seat Leon - AGR 90, AXR 100, ASZ 130, AHF / ASV 110, ARL 150
Seat Toledo - AGR 90, AXR 100, AHF / ASV 110, ASZ 130, ARL 150
Skoda Fabia - ATD / AXR 100, ASZ / BLT 130
Skoda Octavia - AGR 90, ATD / AXR 100, ASZ 130

This will only fit SDI models that come with an Aluminium Sump as standard. (It does not fit models with a Steel Sump)

For all VE Engines with Air Con, a small amount needs to be removed from the sump and AC Pump.

Image for illustration purposes only.
